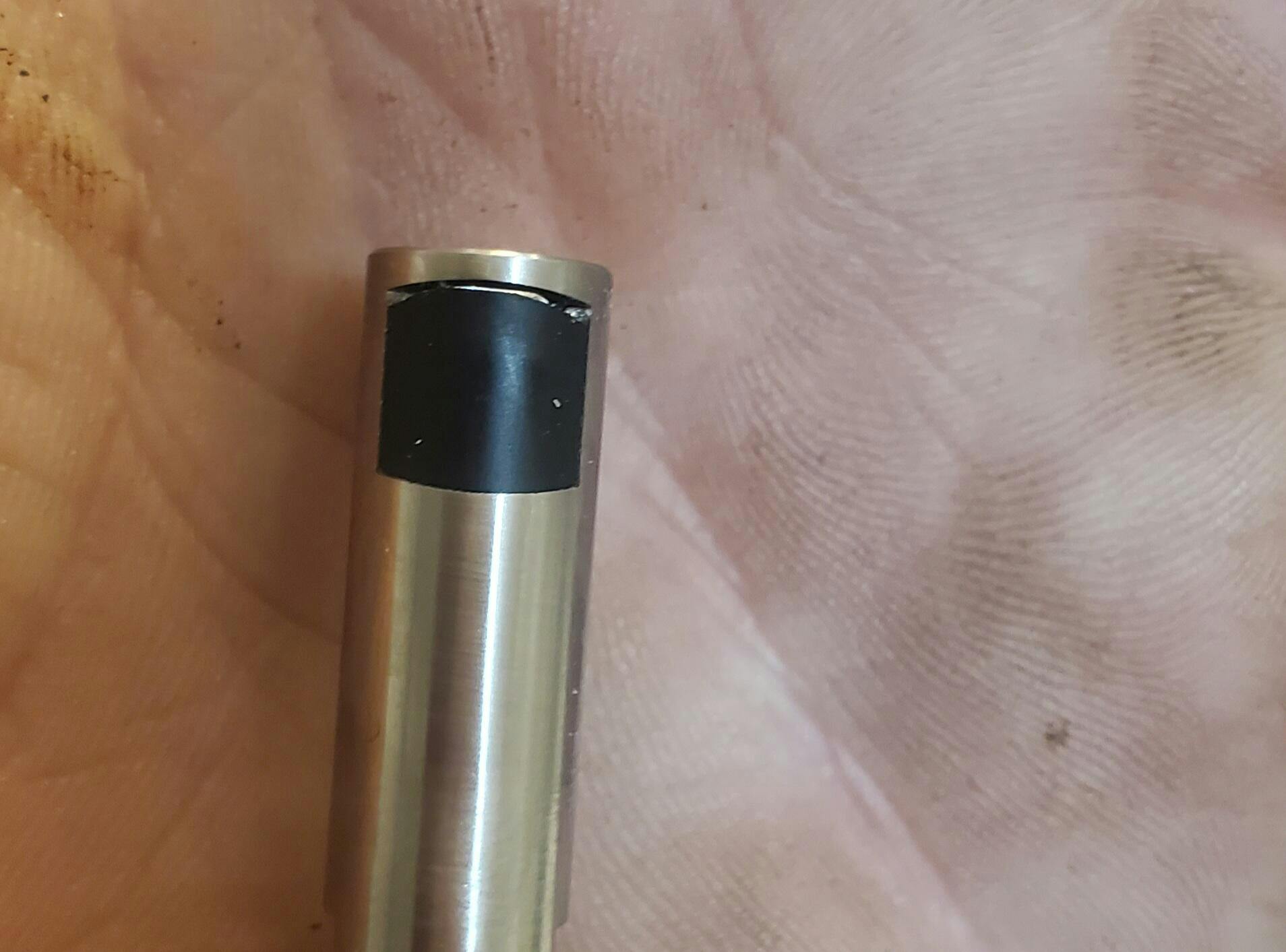

Umbrella Armory Top View R Hop Patch
Umbrella Armory R Hop Angled Top View
Umbrella Armory Bottom Inner View R-hop Patch Prometheus
Umbrella Armory R Hop Patch Prometheus Side View
Prometheus Barrel End Crown Cut

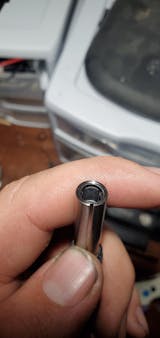

Prometheus Barrel Muzzle End O-Ring Notch

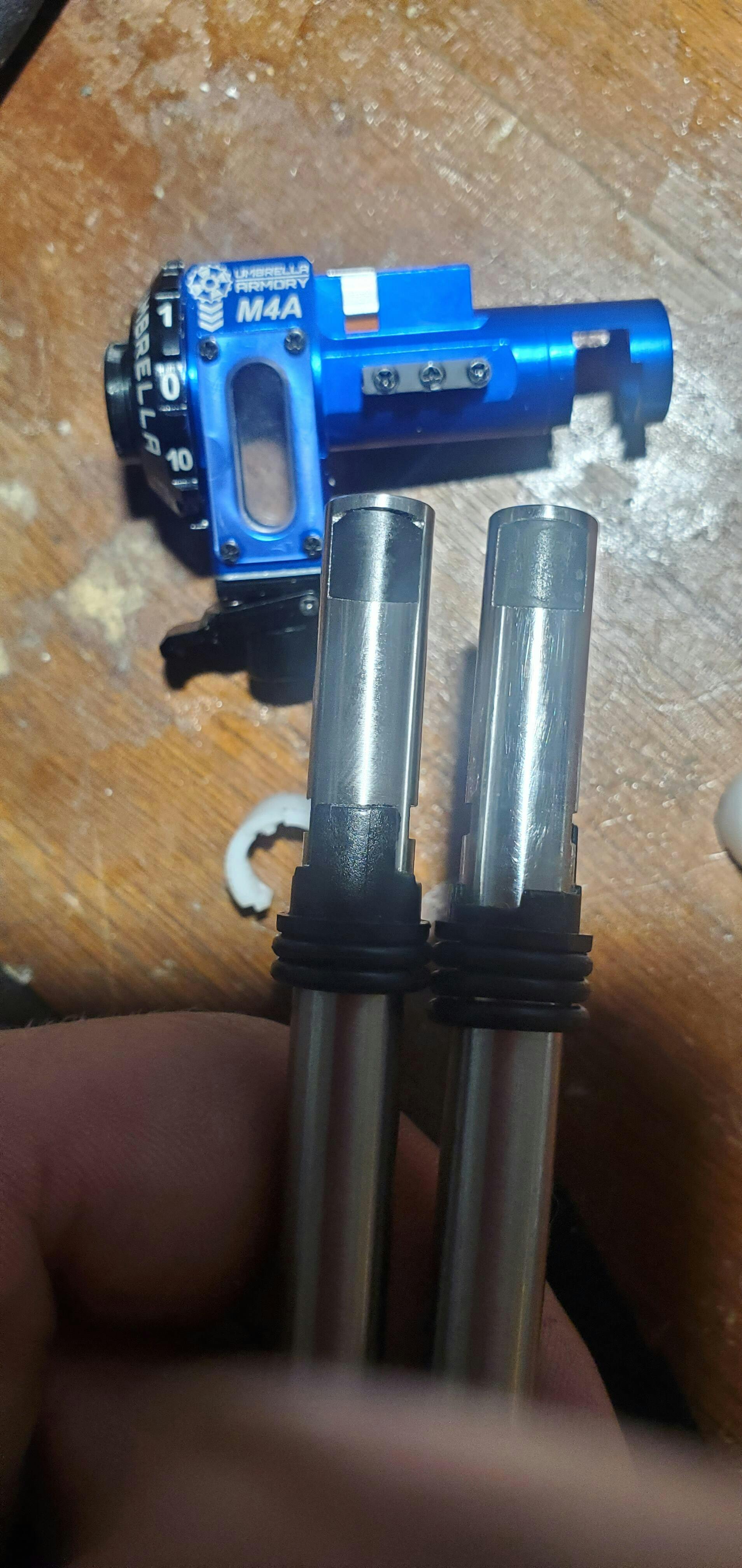

Prowin Rotary Hopup Chamber for V2 and M4
Complete Barrel Prowin Prometheus Assembly
Umbrella Armory R Hop Prometheus Barrels
Umbrella Armory Top View R Hop Patch
Umbrella Armory R Hop Angled Top View
Umbrella Armory Bottom Inner View R-hop Patch Prometheus
Umbrella Armory R Hop Patch Prometheus Side View
Prometheus Barrel End Crown Cut
Prometheus Barrel Muzzle End O-Ring Notch
Prowin Rotary Hopup Chamber for V2 and M4
Complete Barrel Prowin Prometheus Assembly

Umbrella Prometheus 6.03 EG inner barrel with R-hop

$98.00 $115.00
by Umbrella Armory
Type: Assembly
Length
Lapping Service?

~2 Week Build Time

A truly timeless, tried and true setup.


Prometheus 6.03 EG inner barrel with installed R-Hop modification. Available with a pre-assembled drop in kit for compatible TM spec M4 type AEG/HPA Airsoft guns.

The perfect upgrade for any gun, to increase accuracy, range and consistency of each shot fired. Out range anyone else on the field with incredible range and accuracy despite FPS.

Our handmade R-Hop has been an integral modification we perform for all our builds as users can experience 30% increased effective range over non R-Hopped barrels.

Purchase in a complete drop in assembly configuration for a true plug and play upgrade process if your build uses a Tokyo Marui spec M4 style hop up unit.



PRODUCT DETAILS

  • Inner diameter: 6.03 millimeter
  • Polished finish, Mirrored Finish if Lapped
  • Precision, hand fitted R-Hop patch
  • R-Hopped glued into hop window
  • Umbrella Armory specific R-Hop 2.0 patch design and material
  • Requires flat bucking and M-Nubbed / R-Hopped style hop up arm for use (included/assembled with full set)
  • Use .28 gram BBs or heavier to see optimal long range advantage over non R-Hopped comparisons

MATERIAL

  • SUS 304 stainless steel inner barrel
  • Rubber R-Hop patch

DISCLAIMER

LAPPING SERVICE:

What is it? Its a grinding method to microscopically remove material from the surface of the bore. Using extremely fine diamond compounds, we can remove material from the inside of the barrel that is uniform and consistent throughout the bore. Leaving a mirror-like finish that's very time consuming to achieve on a steel barrel.

As a result, the following happens.

  • ~2% increase in FPS
  • Increased shot to shot FPS consistency
  • Increased accuracy downrange
  • Easier barrel cleaning/less stubborn residue buildup

Below is an example of a Prometheus Barrel 6.03mm, pits, and bore marks can be seen within the barrel. With lab instruments we've measured this low/high spread as 5 microns. These microscopic holes tend to catch BB residues, and increase the internal friction of the barrel slowing down the BB.



Below is that same barrel with our lapping process done to it. We're able to reduce the internal bore surface roughness to below 0.5 micron. Resulting in a mesmerizing mirrored effect on the inside.
